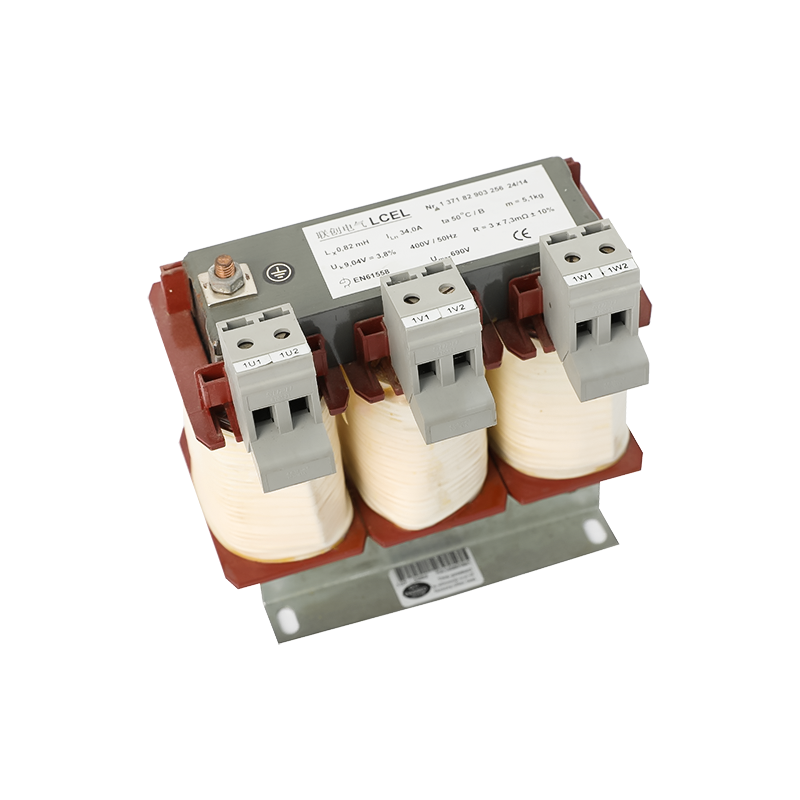

Three-Phase Input Reactor

Three-Phase Input Reactor

Product description
OCL series reactors are used for smoothing filters to reduce transient voltages and extend motor life. Reducing the leakage current caused by the output of higher harmonics can reduce motor noise, reduce eddy current loss, and protect the inverter.



Features
According to the equipment frequency or carrier height, the suitable magnetic material is selected. The insulation system uses composite materials of Class F or higher, so that the reactor maintains good performance even under severe working conditions, and is designed with vacuum impregnation process and low magnetic flux density. The reactor has a smaller arpeggio and better linearity.

0
Views: 1,715
E-mail :sales1@china-transformer.com.cn

Product Detail

Product parameters
Rated working voltage: 380V (690V) 50Hz/6OHz
Rated operating current: 5A to 1250A
Working environment temperature: 500C
Anti-electric strength: iron core one winding 3000VAC/5OHz/5m ha 60s no flying arc breakdown (factory test)
Insulation resistance: 1000VDC insulation resistance ≥100MΩ
Reactor noise: less than 80dB (tested with a horizontal distance of 1 meter from the reactor)
Protection level: IP00
Insulation class: F or above
Product implementation standards: GB19212.1-2008, GB19212.21-2007, G81094.6-201



OCL series of three-phase output reactor parameter table

PART NO.

Power(kw)

Inductance(mh)

Rated current(A)

Dimensions

Installation

L×W×H

L×W

Φ

OCL-1.4-5

1.5

5

1.4

120x70x130

90x38

5x8

OCL-1-7

2.2

7

1

120x70x130

90x38

5x8

OCL-0.7-10

3.7

10

0.7

120x70x130

90x38

5x8

OCL-0.465-15

5.5

15

0.465

120x90x130

90x48

5x8

OCL-0.35-20

7.5

20

0.35

150x90x160

113x65

6x12

OCL-0.235-30

11.0

30

0.235

150x90x160

113x65

6x12

OCL-0.175-40

15.0

40

0.175

180x100x160

150x75

7x19

OCL-0.14-50

18.5

50

0.14

180x100x160

150x75

7x19

OCL-0.12-60

22.0

60

0.12

180x100x160

150x75

7x19

OCL-0.08-90

37.0

90

0.08

180x110x160

150x75

7x19

OCL-0.06-120

45.0

120

0.06

210x120x185

170x85

10x19

OCL-0.0475-150

55

150

0.0457

270x180x235

205x100

10x19

OCL-0.035-200

75

200

0.035

270x185x235

205x105

10x19

OCL-0.028-250

110

250

0.028

270x185x235

205x105

10x19

OCL-0.028-290

132.0

290

0.024

300x180x260

225x120

10x19

OCL-0.028-330

160.0

330

0.021

300x180x260

225x120

10x19

OCL-0.028-390

185.0

390

0.018

300x200x260

225x140

10x19

OCL-0.014-490

220.0

490

0.014

300x200x260

225x140

10x19

OCL-0.013-530

250.0

530

0.013

300x220x260

225x160

11x18

OCL-0.0115-600

280.0

600

0.0115

300x220x260

225x160

11x18

OCL-0.028-660

300.0

660

0.0105

300 x220x270

225x160

11x18

OCL-0.0085-800

380.0

800

0.0085

350x240x300

250x180

11x18

OCL-0.007-1000

450.0

1000

0.007

350x250x320

250x190

11x18

OCL-0.007-1200

550.0

1200

0.0055

350x260x350

250x200

11x18

The above parameters are only part of the dishes, which can be designed and manufactured independently according to customers'needs.
